Import formats

You can import geographic entities from the following formats: ESRI shapefile, ArcInfo coverage, DXF, DGN, DWG In the process of importing points it is not the shapefile that is imported, only the information is copied to the shapefile that is already present in the project. Therefore it is not possible to add any attributes to target shapefile. Only attributes defined in Field-Map Project Manager are present and data can be copied (assigned) to those attributes from the source shapefile.


Centroids

When importing polygons, centroids are imported as well.


Filtering

You can clip imported data by current screen extent, another polygon layer or filter by SQL query.


Assign fields by name option

If the fields that contain attributes have identical names both in Field-Map and the imported file, it is possible use this option to assign the fields automatically

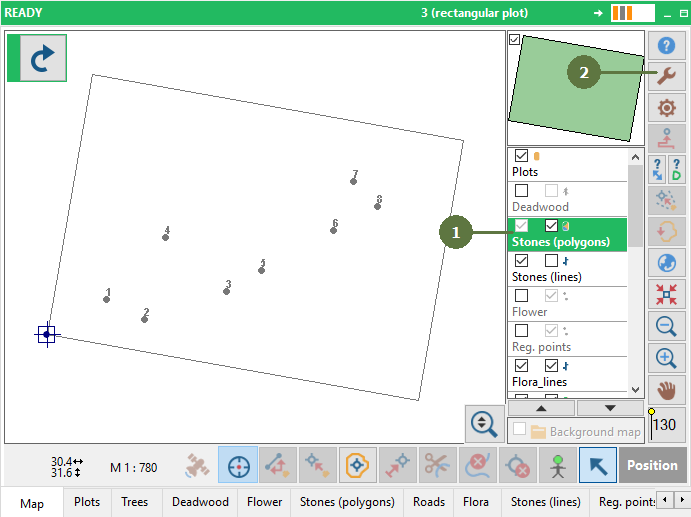

  1. Make sure that the polygon layer is active
  2. Click the Tools button

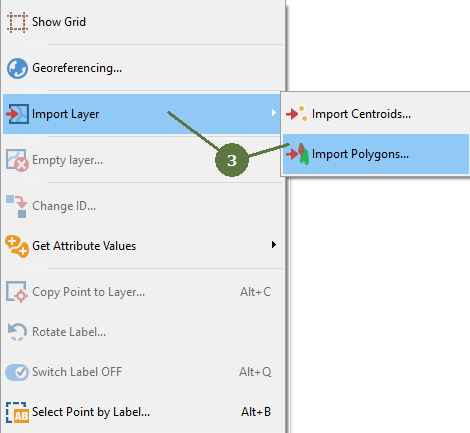

  1. Choose Import layer / Import Polygons menu item





  1. If the active layer is not empty, a dialog window appears. Choose whether to delete all entities from the active layer prior to importing new polygons.

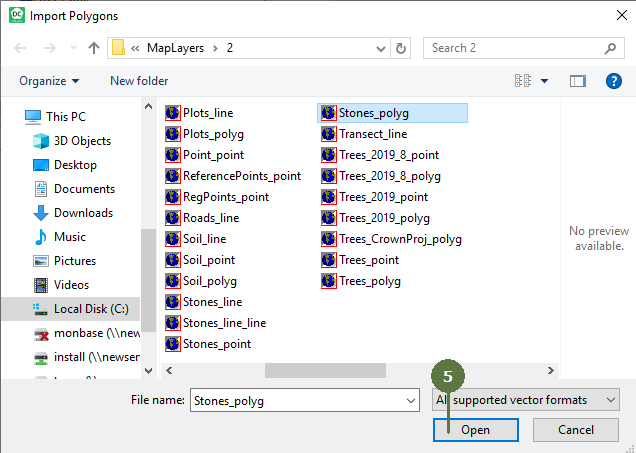

  2. Open the source shapefile

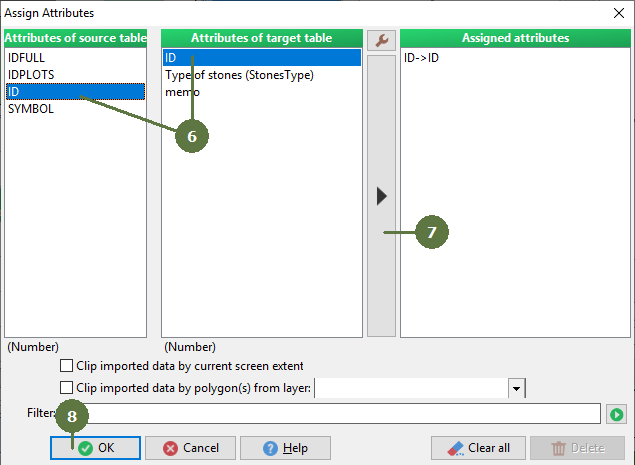

  1. To assign attributes, select the field in the source table and the appropriate field in the target table
  2. Click the Add button.

Repeat steps 6 and 7 for each attribute you want to import

  1. Click OK

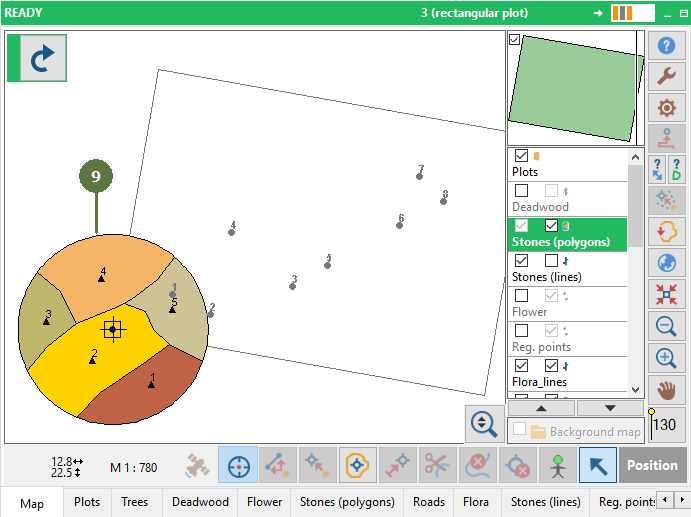

  1. Polygons are imported into the selected map layer
