13.15 Height measurement “Distance + Base using Position” mode

“Distance + Base using Position” mode

The mode is particularly useful in dense forests with tall trees (tropical forests) where it is necessary to move faraway from the tree in order to see it’s top. By using positioning and navigation it is possible to move away from the tree and stay georeferenced.

$lib:\\Height measurement Distance + Base using Position mode-system attributes.png$

Measured system attributes

$lib:\\Heightmeasure2 [Converted].jpg$

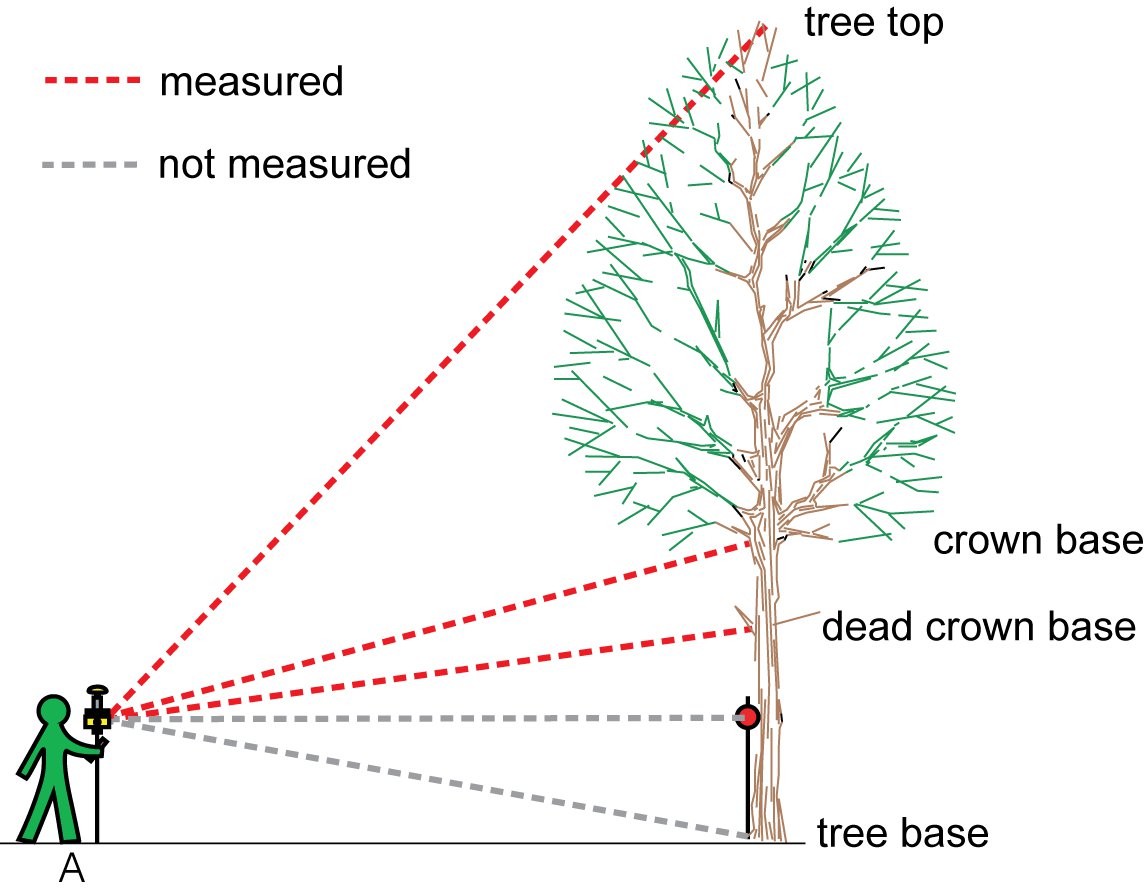

Before editing any attributes you have to measure the position of the tree. Find a place from which you can clearly see the tree and use Positioning to obtain your position

Switch to the Trees form
Select the tree
Click the Mode button

$lib:\\137-1.png$

Select the Distance + Base using Position mode

$lib:\\137-2.png$

The control panel changes its appearance

$lib:\\Height measurement Distance + Base using Position mode-The control panel 1.png$

Click the Tree top button and measure the inclination to the tree top

$lib:\\Height measurement Distance + Base using Position mode-The control panel 2.png$

Measure the inclination to the live crown base

$lib:\\Height measurement Distance + Base using Position mode-The control panel 3.png$

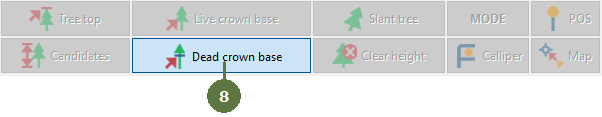

Measure the inclination to dead crown base

$lib:\\Height measurement Distance + Base using Position mode-The control panel 4.png$

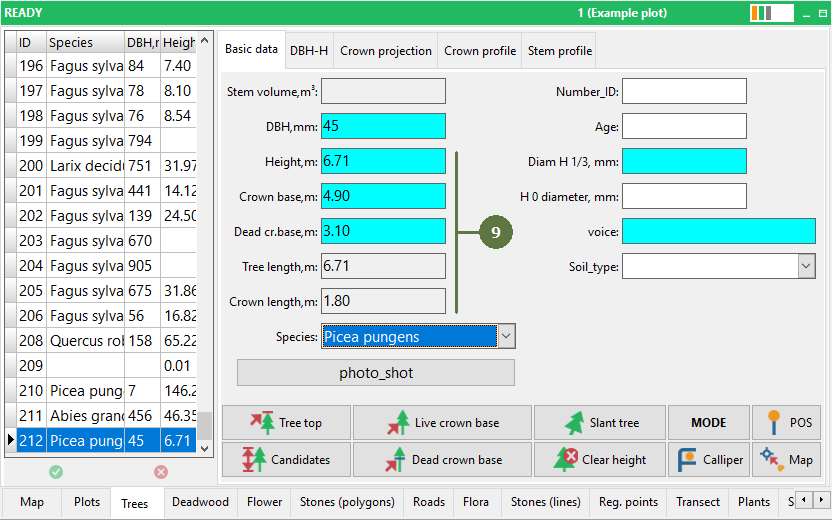

Check the measured data

$lib:\\Height measurement Distance+Base Position using mode-setting full.png$

Note: Crown base is live crown base
